Valorx Fusion Settings

Valorx Fusion Settings let users configure how Fusion behaves on their machine, separate from the app-level settings within Salesforce. The Settings screen is organized into four sections: Information, Settings, Logs, and Runtime Cache, each covering a different aspect of the Fusion experience.

Accessing Settings

To open Valorx Fusion Settings, click the Settings button on the Valorx Fusion Ribbon.

Accessing Settings

Information

The Information tab displays your current application version alongside your user and organization details, pulled directly from your connected CRM account.

Information

Application Version

• Version – the currently installed version of Valorx Fusion (e.g., V21.43)

User Information

• Full Name – the name associated with your logged-in user account

• User Email – the email address tied to your account

• User Name – your CRM login username

• User Id – your unique CRM user identifier

• License Type – the type of Valorx license assigned to your account

• Organization Name – the name of your connected Salesforce organization

• Organization Id – the unique identifier for your Salesforce organization

This information is read-only and is primarily useful for troubleshooting or when contacting Valorx Support, since it lets support quickly confirm which version, user, and org you're working from.

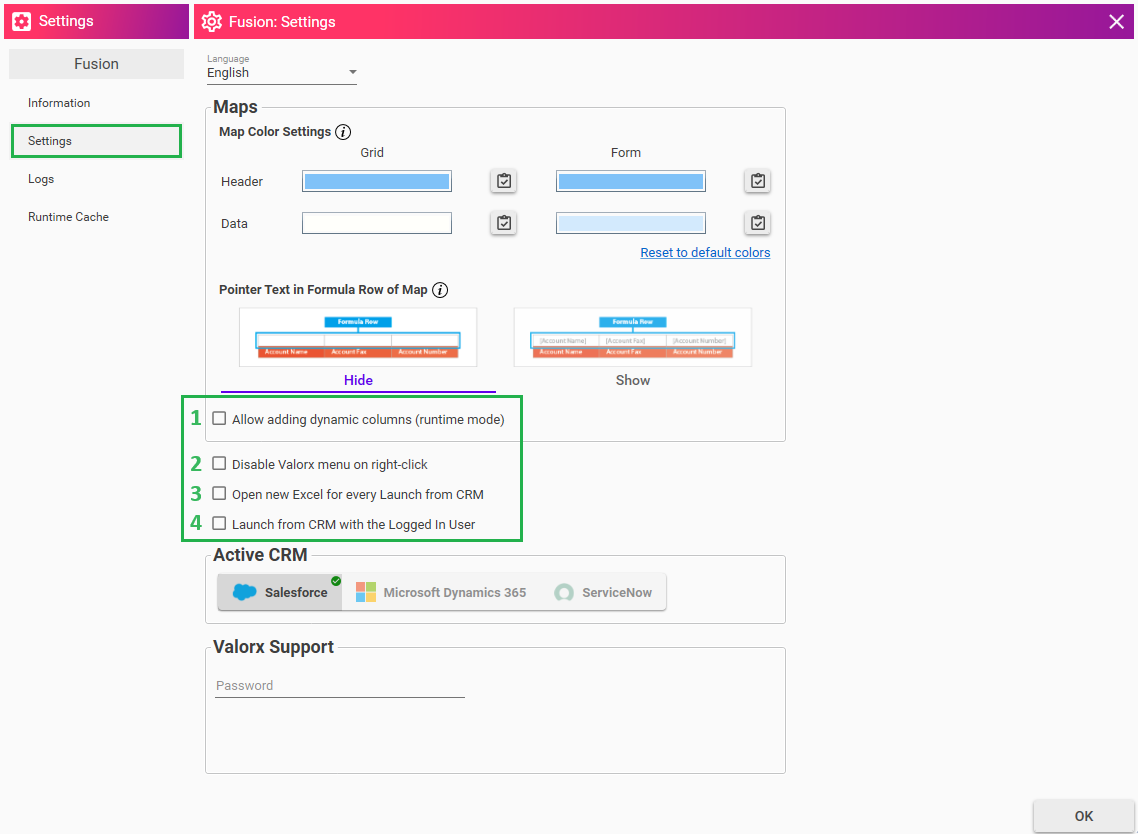

Settings

The Settings tab lets users configure how Valorx Fusion behaves, including Map appearance, general application behavior, active CRM connections, runtime file storage, and Valorx Support access.

Settings

Maps

Map Color Settings let users customize the header and data background colors for Grid and Form Maps before creating them. To access these settings, click the color palette icon on the map toolbar to open the color picker. Colors can be set independently for both Grid and Form Maps, using either Standard (pre-defined colors) or Advanced (custom color) options. Users can reset colors to default at any time. This only affects map-level color settings and does not impact any other map customization.

Maps

Pointer Text in Formula Row of Map controls whether the formula currently used for a mapped column is displayed in the map's formula row. This is especially useful for blank columns or save-only fields where custom formulas have been applied, letting users quickly see which formula is driving a given column. Users can toggle this text to Show or Hide as needed.

General Options

• Allow adding dynamic columns (runtime mode) – Designers can allow users to add dynamic columns while in runtime mode by checking this checkbox.

• Disable Valorx menu on right-click – Disables the Valorx right-click context menu when checked.

• Open new Excel for every Launch from CRM – Opens a new Excel file each time "Launch from CRM" is executed. This improves Fusion App performance and prevents unintended changes to an existing Excel file.

• Launch from CRM with the Logged In User – Allows the logged-in user (Admin User) to use "Launch from CRM" to access any user's Valorx Fusion App directly, without creating a new connection or re-entering credentials. Triggered via the "Launch Valorx" button in Salesforce.

• Activate new User Selection Screen – Displays an updated user selection screen, letting users choose or switch accounts before launching Fusion.

• Disable Automatic Single Sign On OS For Primary Account – Prevents Fusion from automatically signing in the primary account using OS-level single sign-on, requiring manual login instead.

• Disable announcements on startup – Prevents announcement pop-ups from appearing when Fusion starts.

Active CRM

Active CRM displays the CRM connections available on the Start Screen, letting users quickly view and switch between connections. Valorx Fusion currently supports three CRM connections: Salesforce, Microsoft Dynamics 365, and ServiceNow.

Runtime File Location

Runtime File Location lets users specify where Fusion's runtime files are stored. This setting only takes effect when Store Runtime files in User's OneDrive folder is enabled in the App Settings screen. By default, the folder is set to:

C:\Users\<Name>\OneDrive - Valorx Inc

Users can click Change Folder to select a different storage location if needed.

Valorx Support

The Valorx Support section provides a password field that unlocks additional support-level options within Fusion. Since this password is not self-service, users who need access should contact Valorx Support at [e-mail] to obtain it.

Logs

Use the Logs section to view activity logs for both Design Studio and Runtime. For more information, see Logs.

Runtime Cache

When users run an application, certain files required for the app to start are downloaded and stored locally on the device. This caching reduces launch time on subsequent runs, since those files don't need to be downloaded again, resulting in a faster launch and a better overall experience.

The Runtime Cache tab lists all cached apps, showing:

• App Name: the name of the cached application

• Connection: the CRM connection associated with the app

• Cached Time: when the app's files were last cached, along with a relative time (e.g., "22 hours ago")

Runtime Cache

Deleting Cache Files for Individual Apps

If recent app design changes aren't reflected properly, users can clear the cache for a specific app:

1. Click Settings.

2. Then click on the Runtime Cache tab.

3. Locate the app in the list.

4. Click the Delete icon next to the app's name.

This removes the cached files for that app only, ensuring the latest design changes are loaded on the next launch.

Delete cache file for individual apps

Deleting All Cache Files Using Purge Cache

To clear the cache for all apps at once, use Purge Cache:

1. Click Settings.

2. Click on the Runtime Cache tab.

3. Click the Purge Cache button.

This removes cache files for all apps simultaneously. It's useful when multiple apps aren't reflecting recent changes and a fresh load is needed across the board.

Delete all cache files using Purge Cache
